Operational Modal Analysis, Vibration & Earthquake Monitoring for Civil Structures

Conduct OMA, Periodic or Permanent Monitoring without Expensive Equipment & Complicated Setup with OMAway Solution

Read More About The Service

All in one solution: Software & Sensors

Designed for Operational Modal Analysis

Permanent Vibration & Earthquake Monitoring

Versatile Solutions for Monitoring Structural Health

A to Z Solution for monitoring important indicators of any civil structure

Read More About The Service

Dynamic Features & Vibration

Strain, Displacement, Crack & Load

Wireless & Versatile Solutions

Structural Design & Engineering Consulting Services

Design that gives you safe, cost-efficient and code-compliant projects

Read More About The Service

On time, in budget

Optimized for Cost

Optimum Performance

thin

PRODUCTS & SERVICES

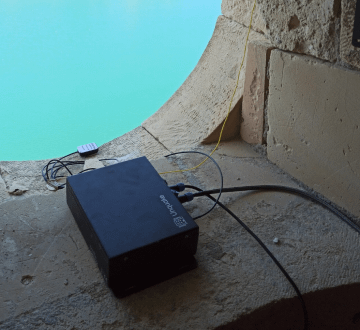

OMAway Solution

OMAway makes Operational Modal Analysis simple and cost- efficient without complicated setup or hiring outside help. OMAway accelerograph comes with a software for OMA and offers remote collection of data.

MORE INFO ON OMAway

Structural Health Monitoring

We provide a multitude of solutions depending on the project – structure and the structural indicator you want to monitor. We start from our in house solution of OMAway sensors and software for vibration, earthquake and structural monitoring to a variety of products for monitoring static quantities (e.g. displacement, strain, crack) in cooperation with our partners.

MORE INFO ON SHM

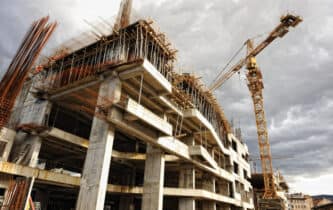

Structural Design and Engineering Consulting Services

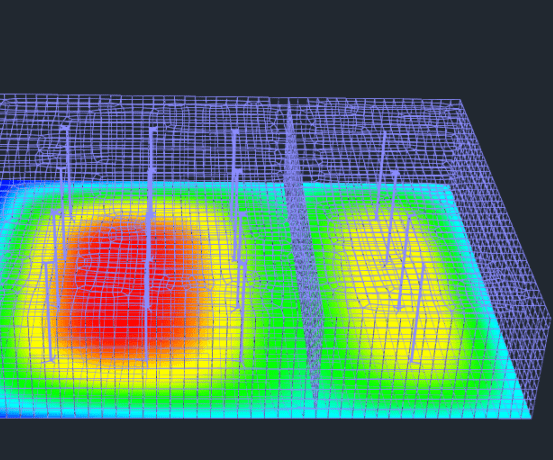

Our clients can hire Unquake engineers for structural design of concrete, steel, timber and masonry structures according to the Eurocodes. The analysis part is performed with state of the art Finite element model software. We can also aid structural engineers to interpret and integrate in a FEM framework the results from periodic monitoring (e.g. extracted dynamic features) and create much more accurate models that are especially helpful in old and historical structures.

MORE INFO ON CONSULTING

PROJECTS

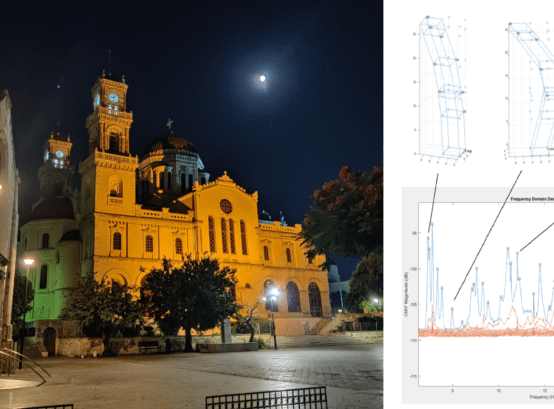

OPERATIONAL MODAL ANALYSIS OF AGIOS MINAS BELL TOWERS & MAIN CHURCH

Agios Minas is a significant monument church build around 1860 in Heraklion of Crete in Greece.

OPERATIONAL MODAL ANALYSIS OF TØNSBERG TOWER IN NORWAY

Tønsberg tower was raised in 1888 as a memorial of the historic fortress in Tønsberg, Norway.

DYNAMIC FEATURE EXTRACTION OF THE HISTORIC BRIDGE SIMA IN CRETE

Sima bridge was built in Rethymnon of Crete, Greece in the early 1900’s

PROJECTS

HOTEL BUILDING IN ATHENS, GREECE

Operational Modal Analysis, Finite Element Model Calibration and Structural Assessment based on Eurocodes 1992, 1998

PERMANENT ONLINE ACCELEROGRAPH ON AGIOS MINAS CHURCH

Agios Minas is a significant monument church build around 1860 in Heraklion of Crete in Greece.

OPERATIONAL MODAL ANALYSIS OF OFFICE BUILDING IN ATHENS GREECE

After OMA, simplified model calibration and first level seismic assessment was also performed

PROJECTS

OPERATIONAL MODAL ANALYSIS OF ZOGRAFOS’ MAUSOLEUM IN A’ CEMETERY OF ATHENS

Zografos’ Mausoleum is the last home-place of father and son Zografos, two great benefactors of modern Greek history.  The style is French Baroque and resembles, in miniature, the tomb of Napoleon in Paris.

MEASUREMENTS AND DYNAMIC FEATURES EXTRACTION OF THE LIGHTHOUSE IN RETHYMNON, CRETE, GREECE

Built by Egyptians around 1830 in Rethymno, Greece and located at the tip of a stone fortification. It consists of a lantern and gallery atop a stone column resting on a square base of stone. The top third of the column are round,, the bottom two-thirds octagonal.

thin

CASE STUDIES

Amir S.

Researcher, Norway

1. What was the project(s) that you used our accelerographs and software for Operational Modal Analysis on?

Our group is working as the leader of work package 5 of the HYPERION project. HYPERION is a 4-year EC Funded project that has received funding from the European Union’s Horizon 2020 research and innovation program. The main focus of the project is to assess the vulnerability of the historic area subjected to different types of risks and investigate their impact on economies, politics, and societies to deliver an integrated resilience assessment platform. In the link below, you can find more about the project: https://www.hyperion-project.eu/

2. Why did you want to use this solution apart from the classical engineering approach?

Since destructive tests for investigating the material properties of cultural heritage assets is impossible, nondestructive solutions should be utilized. For this purpose, the operational modal analysis is employed for model updating the assets to provide a robust finite element model.

3. What surprised you after using it?

Since destructive tests for investigating the material properties of cultural heritage assets is impossible, nondestructive solutions should be utilized. For this purpose, the operational modal analysis is employed for model updating the assets to provide a robust finite element model.

4. How easy was to install the sensors, extract the data and do post processing to obtain Operational Modal Analysis results?

Installation of the sensors is effortless and does not any special equipment, and it can be done with glue and steel plates as the sensors’ bases. Moreover, the Unquake software is friendly to perform the initial analysis to have an overview of the test in the most efficient way.

5. What’s the No. 1 reason you would recommend our solution?

The first customers are always the losers! We also expect problems with the sensors and bugs for the software, and we also face these problems. But if I want to be honest, we could not feel them due to the best customer service of the company. I really appreciate all the supports and helps that we had during our project from the company employees. They were on time for answering the questions and helpful for solving the problems, and we could reach them even by phone easily during the day.

CASE STUDIES

ARIS X

Structural Engineer, Greece

1. What was the project(s) that you used our accelerographs and software for Operational Modal Analysis on?

The accelerographs were used for the operation modal analysis of the following projects:

  • A-Structural Assessment and Restoration of an early 20th century three-span stone bridge, named the Bridge of Sima. The bridge is located on the regional road network of the Municipality of Rethymno, Crete, Greece.
  • B-Structural Assessment and Rehabilitation of the City Hall of Rethymno, Crete, Greece. The building ‘s structural system is made of reinforced concrete.
  • C-Structural Assessment and Restoration of the 19th century stone Lighthouse of the Venetian Harbour in the Old Town of Rethymno Crete, Greece.
2. Why did you want to use this solution apart from the classical engineering approach?

For projects A and C the solution of Operation Modal Analysis was selected because it is considered as, probably, the only reliable method for extracting the dynamic characteristics of a masonry structure. Destructive and medium destructive technics like core sampling and rebound test, give an evaluation of the mechanical properties of masonry ‘s stone and mortar. But the behavior of masonry as a homogenous material cannot be extracted. Therefore, the Operational Modal Analysis gave an approximation of the real vibration frequencies of the structure. Those data were used for the calibration of a finite element model created, comparing calculated and measured frequencies.Regarding project B, although the concrete ‘s characteristics are more easily to be estimated, the Operational Modal Analysis made possible to evaluate all the factors that influence the dynamic response of the building, such as the influence of the infill masonry. Although concrete acts as a homogenous material, much more comparing to masonry, it was observed a wide variation of the finite element model frequencies compared to the measured ones. That proved the necessity of reliable estimation of the dynamic behavior, even in the cases of more “common” structural systems.

3. What objection or doubt did you have about this solution before using it?

There was a concern regarding the sensitivity of the acceleographs. Meaning whether they would be able to isolate the dominant frequencies, in case of vibration form factors, other than ambient viabration. Nevertheless, even in the case of the stone bridge, the acceleographs were able to distinguish the ambient vibration from the external factors (car traffic vibrations)

4. What surprised you after using it?

It was surprisingly easy to install the sensors and process the data even in the case of multiple accelerographs installation.

thin

Upscale your Expertise.

Use OMAway for Operational Modal Analysis .

Read More About The Service
